SPECIFICHE

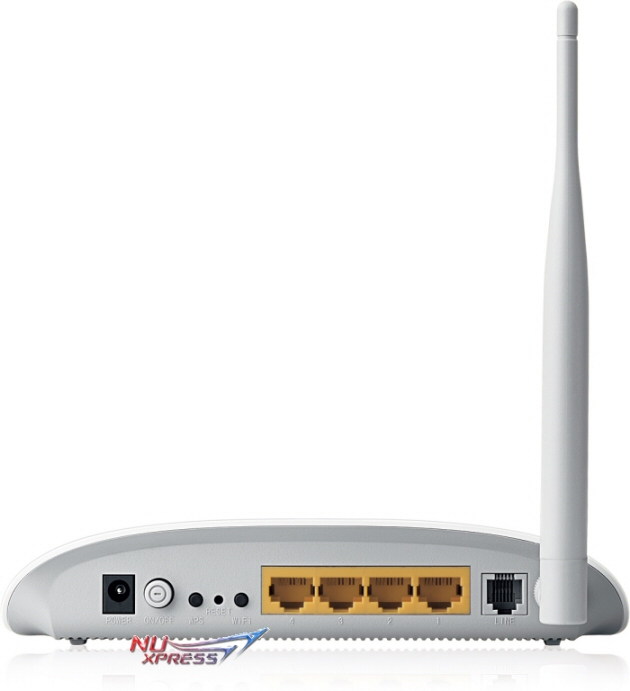

Interfaccia
4 Porte 10/100 Mbps RJ45
1 Porta RJ11

Bottone
1 Int. Accensione/Spegnimento
1 Tasto QSS

Alimentatore esterno
9VDC/0.85A

Standard IEEE
IEEE 802.3, 802.3u

Standard ADSL
Full-rate ANSI T1.413 Issue 2, ITU-T G.992.1(G.DMT), ITU-T G.992.2(G.Lite)
ITU-T G.994.1 (G.hs), ITU-T G.995.1 , ITU-T G.996.1, ITU-T G.997.1, ITU-T K.2.1

Standard ADSL2
ITU-T G.992.3 (G.dmt.bis), ITU-T G.992.4 (G.lite.bis)

Standard ADSL2+
ITU-T G.992.5

Dimensioni (LxPxA)
6.9×4.7×1.1 in. (174×120×29mm)

Tipo di antenna
Omni direzionale, Removibile, Reverse SMA

Guadagno dell’antenna
3 dBi

CARATTERISTICHE WIRELESS
Standard wireless
IEEE 802.11g, 802.11b, Lite N

Frequenza
2.400-2.4835GHz

EIRP
<20dBm(EIRP)

Sicurezza wireless
Supporto WEP 64/128 bit, WPA-PSK/WPA2-PSK, WPA/WPA2, Wireless MAC Filtering

CARATTERISTICHE SOFTWARE
Quality of Service
QoS Remarking basato su IPP/ToS, DSCP e 802.1p

Port Forwarding
Virtual server, DMZ, ACL(Access Control List)

VPN Pass-Through
PPTP, L2TP, IPSec Pass-through

Protocolli ATM/PPP
ATM Forum UNI3.1/4.0,
PPP over ATM (RFC 2364),
PPP over Ethernet (RFC2516),
IPoA (RFC1577/2225),
PVC - Fino a 8 PVC

Caratteristiche avanzate
Traffic Shaping(ATM QoS) UBR, CBR, VBR-rt, VBR-nrt;
Dynamic Host Configuration Protocol (DHCP), DHCP relay;
Network Address Translation (NAT); PVC/Ethernet Port Mapping
VLAN, 802.1P, Static Routing, RIP v1/v2 (optional);
DNS Relay, DDNS, IGMP snooping V1/2IGMP Multicast, UPnP

Sicurezza
NAT Firewall, SPI Firewall, MAC / IP / Packet / Application / URL Filtering, Denial of Service(DoS), SYN Flooding, Ping of Death

Gestione
Configurazione da Web (HTTP), Gestione Remota, Configurazione da Telnet, Command Line Interface, SSL per TR-069, SNMP v1/2c, SNMP over EOC, Aggiornamento Firmware da Web, CWMP(TR-069), Strumenti di Diagnostica

ALTRO
Certificazione
CE, FCC, RoHS

Contenuto della confezione
TD-W8951ND
Alimentatore
Splitter ADSL
Cavo DSL RJ11
Cavo Ethernet RJ45
CD con Software e Manuali
Manuale di Installazione Rapida

Requisiti di sistema
Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7, MAC® OS, NetWare®, UNIX® o Linux.
